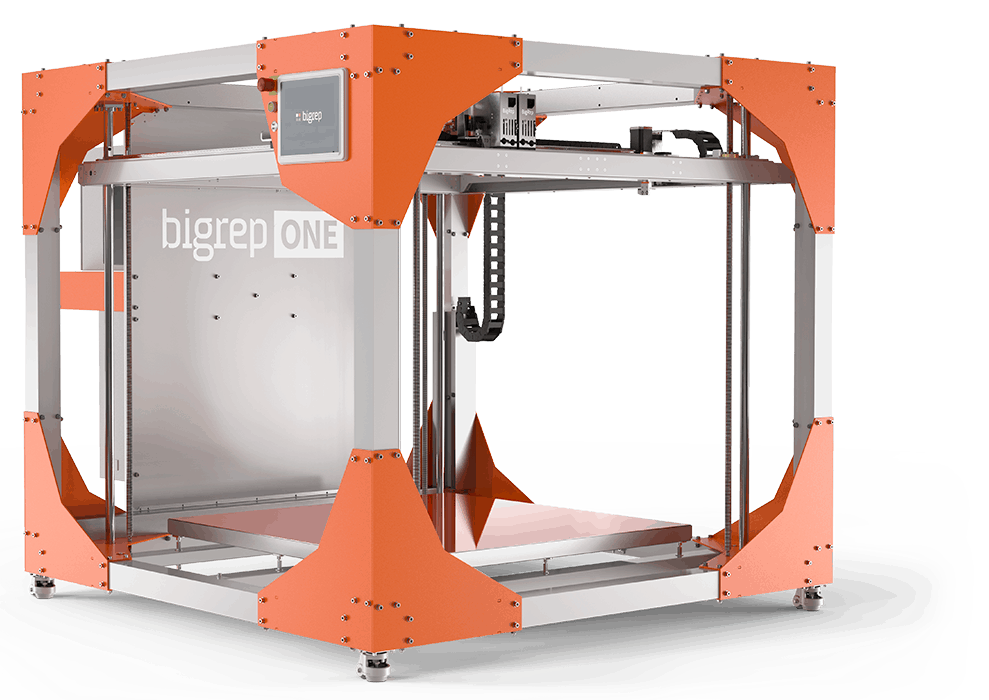

The BigRep ONE


The BigRep ONE is a world-leading large-format 3D printer at an accessible price point. With an install base of over 400 systems, it's a trusted tool of industrial manufacturers around the world. Featuring a massive one-cubic-meter build volume, the ONE works quickly and reliably to bring your designs to life in full scale.

Perfect for high-strength industrial applications or prototyping in full scale, the ONE comes equipped with two BigRep Power Extruders that feature interchangeable 0.6, 1.0 and 2.0 (mm) nozzles for high-flow or maximum detail additive manufacturing.

Printer Specifications:

  • Easy slicing with BigRep BLADE, our free slicing software
  • Build Volume: 40 x 40 x 40 in
  • Consumables: PLA (Standard, Ultralight, Antibacteria), PRO-HT, HI-TEMP, PLX, PETG, TPU, BVOH


Key Features of the BigRep PRO Industrial 3D Printer


Industrial 3D Printing

The PRO continues BigRep’s tradition of innovation in large-format 3D printing. Designed to print massive, industrial parts, as well as batches of smaller parts, its fully enclosed one cubic meter build volume ensures consistent print temperatures and safety from hazards on the factory floor. Its glass doors allow visual monitoring throughout the creation of demanding, geometrically complex parts in full scale.

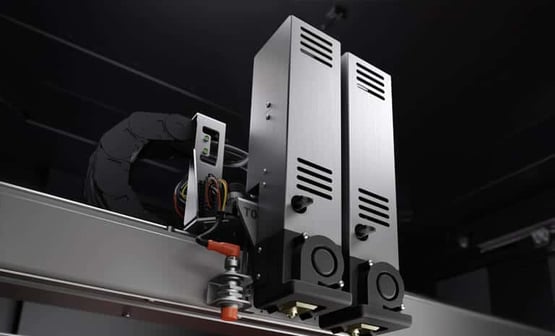

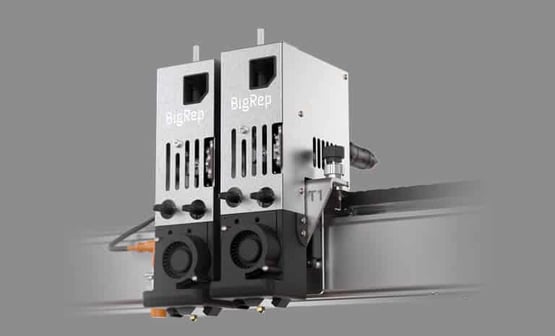

Speed & Precision

BigRep's Advanced Capability Extruder (ACE) expands the material capabilities of the PRO while still reliably delivering quality prints with speed and precision. ACE is a direct drive extruder, perfectly equipped for fiber reinforced materials such as BigRep's HI-TEMP CF. With ACE you can print large-format, strong parts 50% faster than other large-scale printers.

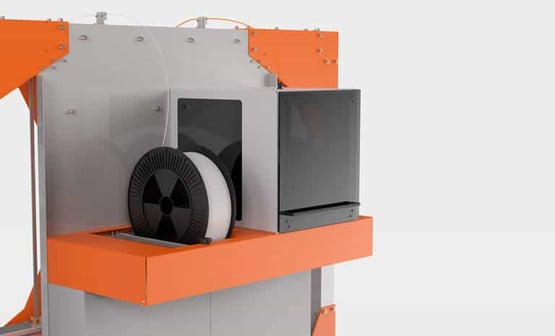

Sealed Filament Chamber

The PRO’s environmentally sealed filament chamber ensures that stocks of all materials, including engineering-grade and water-soluble, can be well maintained and remain consistently dry in ideal operating condition for reliable, repeatable, and quality printing. Well preserved filaments will help reduce extruder clogging and avoidable wear on components to reduce downtime and extend the life of your machine.


Robust & Stable

The PRO's massive 1m3 build volume is supported by its custom-built, heavy duty gantry engineered for high speed, fast acceleration, and heavy payloads. Its robust welded frame eliminates vibrations during printing assuring smooth movement of the extruders that glide along a reinforced double rail system. Sturdy Bosch servo motors power the precise movement with internal encoders able to calculate real-time location of the print head and self-monitor for position accuracy.


Highly Responsive

An advanced Bosch Rexroth CNC motion-control system elevates the PRO’s responsiveness for unquestionable speed, precision, and repeatability. Local data collection for real-time monitoring with 32 integrated sensors ensures optimal print process and reliability. Fleet management is made easier with live webcam view of print progress. The industrial-grade BOSCH Safe Logic 2-channel failsafe system safeguards users by instantly stopping the portal if the enclosure is opened during printing.


Easy Slicing

As one of the fastest and most precise slicer software on the market, BigRep BLADE is optimized for industrial part slicing for rapid, hassle-free 3D printing preparation. Its integrated estimation engine gives accurate printing time and material use predictions for unmatched planning and productivity. Preloaded presets for all compatible BigRep materials, as well as automated part orientation, batch placement, and support generation means you can easily slice your prints in just a few clicks.
