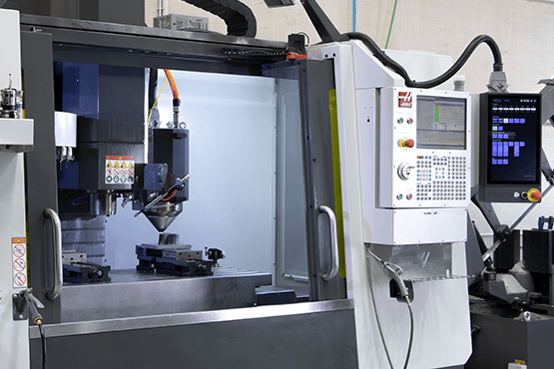

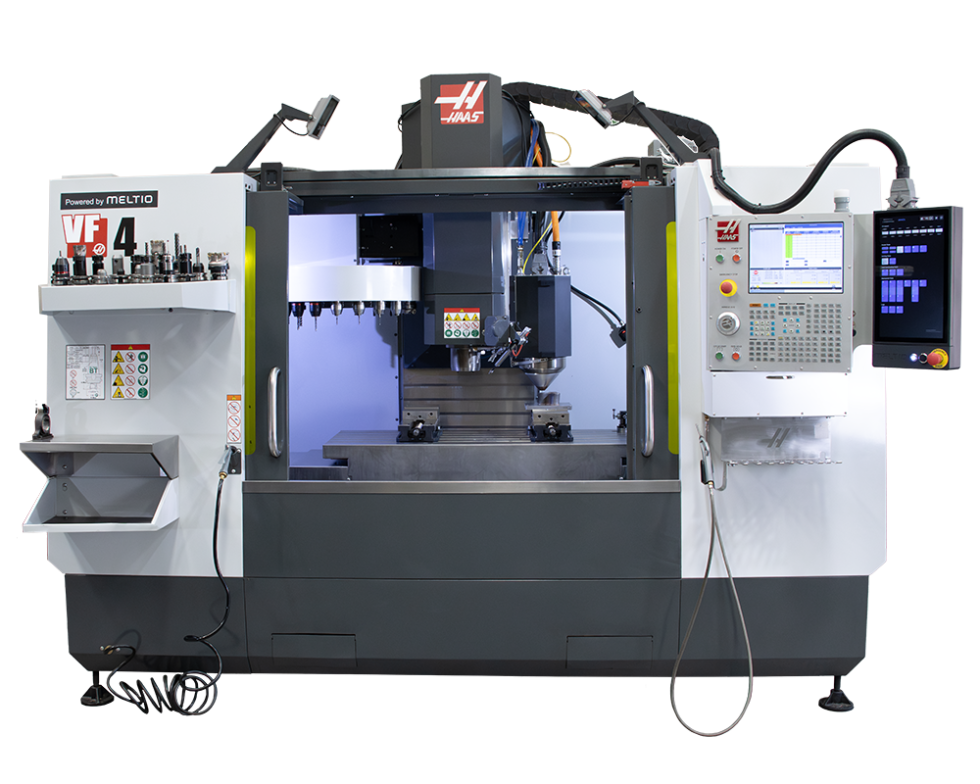

The Meltio Engine CNC Integration

Hybrid Manufacturing Integration

Turn any machine tool into a hybrid manufacturing system with no inherent size constraints. The Meltio Engine is the ideal CNC complement for near net shape manufacturing, repair and feature addition.

Through hybrid manufacturing, you can create highly complex parts with machining tolerances in the same process. The geometry freedom allows for a working envelope only limited by the size of the motion system.

Printer Specifications:

  • Dimensions: 390x700x1025 mm
  • Print Envelope: inherent to motion system
  • Weight: 142 kg
  • Laster Power: 1200 w
  • Laster Type: multiple 200 W direct diode lasers
  • Process Control: closed-loop, laser and wire modulation
  • Cooling: active water-cooled chiller included
  • Materials: Stainless Steels, Mild Steels, Carbon Steels, Titanium alloys, Inconel, Copper
Meltio Engine CNC Integration

Key Upgrades and Accessories for the Meltio Engine CNC Integration



Meltio Duel Wire

Duel Wire

Print parts in two materials using the duel wire option. Dual wire allows for the fast and automatic switching of materials within a print without cross-contamination.







Meltio Laser Calibration System

Laser Calibration System

It allows users to calibrate Meltio's multi-laser deposition head accurately and effortlessly prior to every print.
