The BigRep VIIO 250

The Next Level of Automated Production

The large-scale BigRep VIIO 250 is a fully automated 3D printer for reliable continuous industrial manufacturing.

To achieve this, the machine is built with breakthrough automation features: a backup extruder function - Relay Mode, auto print bed calibration, auto-sequential printing and the automated filament handler - Infinity Box. Featuring duel Smart Manufacturing Extruders and an intuitive user machine interface with animated guides, using an industrial 3D printer has never been this easy. These combined automation features deliver a big impact: maximized machine efficiency

Designed for high efficiency, the VIIO 250 enables affordable production of functional parts with reduced energy consumption. 3D print more quality parts in less time so you can save costs and get production off your hands. With the VIIO 250, spend less time printing and more time doing

Printer Specifications:

  • Fused-Filament-Fabrication (FFF/FDM)
  • Dual Smart Manufacturing Extruders (SMX)
  • Build Volume: 100mm x 500mm x 500mm (x,y,z)
  • Layer Heights:0.2mm, 0.3mm, 0.5mm
  • Compatible Materials: ASA, HI-TEMP CF, PA12 CF, PETG, PLA, PLX, PRO HT, TPU 98A

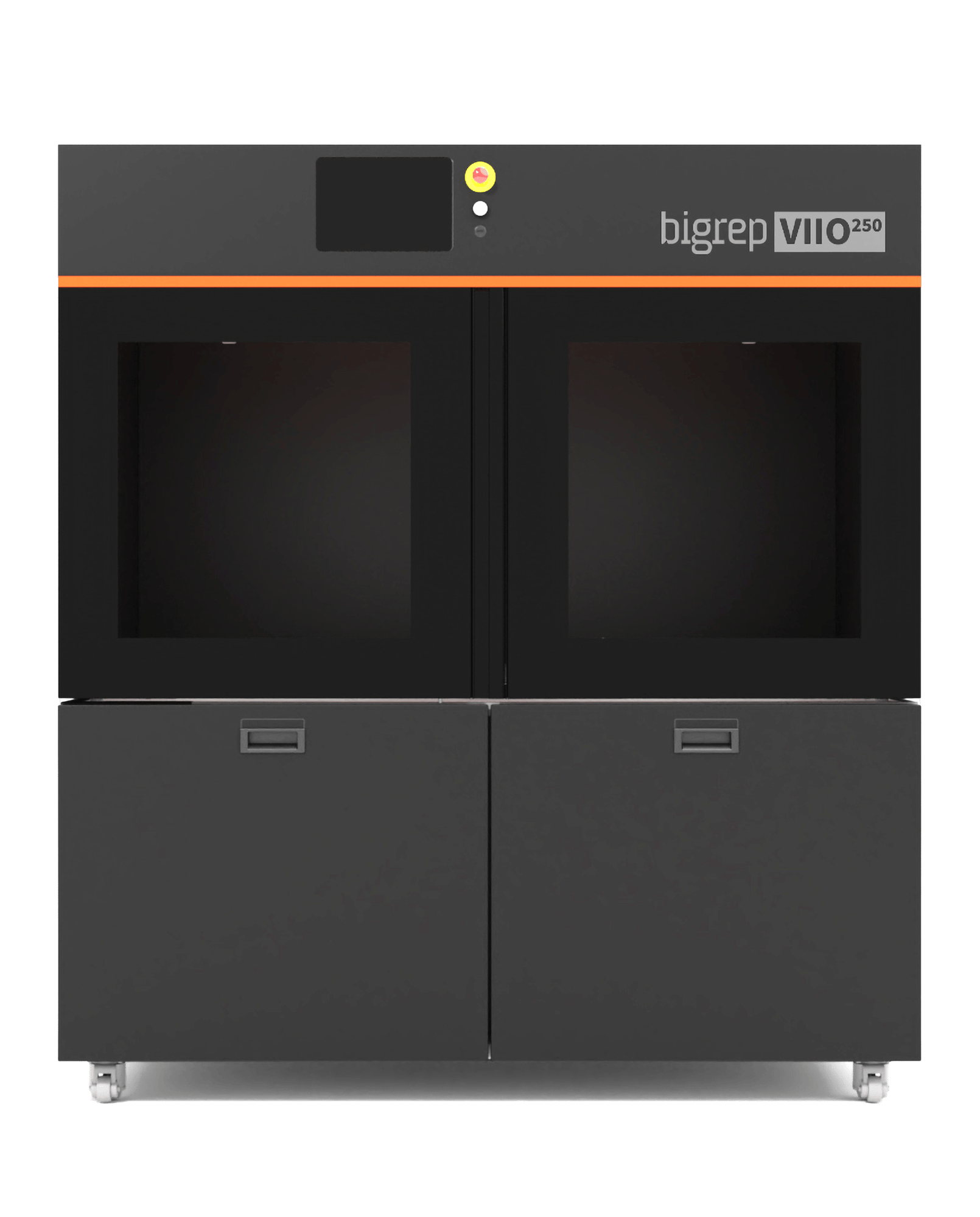

BigRep VIIO 250_rendering_Front_2

Key Features of the BigRep VIIO 250 Industrial 3D Printer

BigRep 250 landing page image 1

Large-Scale Build Volume

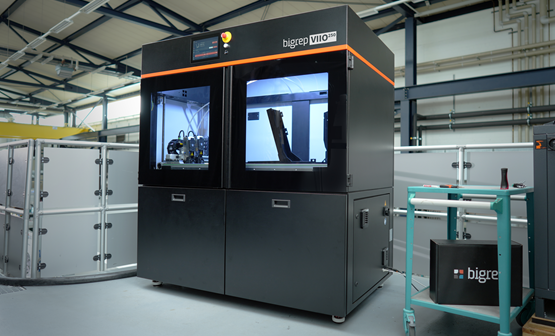

The 250-liter (1000mm X 500mm X 500m) spacious build chamber comes with an active temperature control up to 50°C. Built with a compact design, the VIIO 250 offers large-format printing capabilities in a robust, sleek frame that fits for any workspace.

BigRep 250 landing page image 3

24/7 Automation

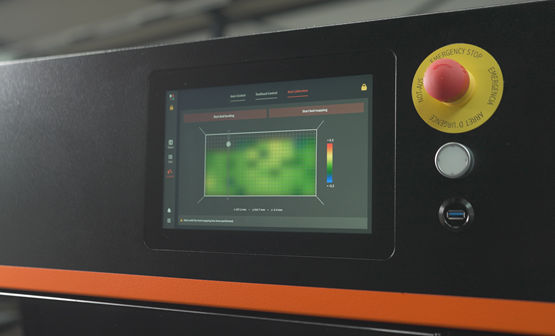

Auto calibration including bed mapping and flow rate adjustment makes printing easier than ever. The Infinity Box automatically loads new filament during the print job, and Relay Mode automatically switches to a backup extruder for reliable non-stop printing.

BigRep 250 landing page image 2

Dual SMX Extruders

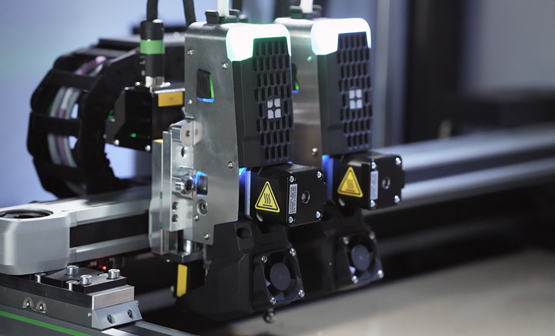

Advanced print monitoring thanks to dual XMS (Smart Manufacturing Extruders) extruders that reach up to 350°C with embedded sensors for precise control. The extruders have LED light indicators to signal different statuses and come in 3 nozzle sizes - 0.4, 0.6, and 1.0mm.

BigRep 250 landing page image 4

Open Materials Platform

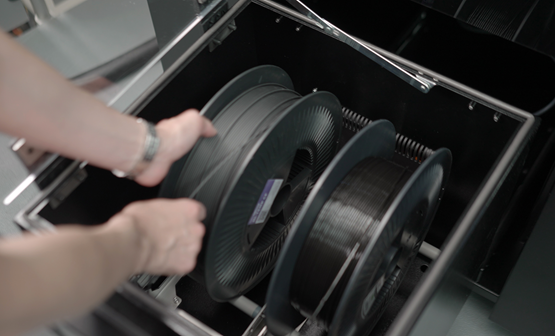

The VIIO 250 is an open material platform. Use BigRep filament for best quality or a third party's for maximum flexibility. The Infinity Box doubles as an active keep-dry box to store filament in optimal conditions and holds 4 spools of up to 8kg each.
